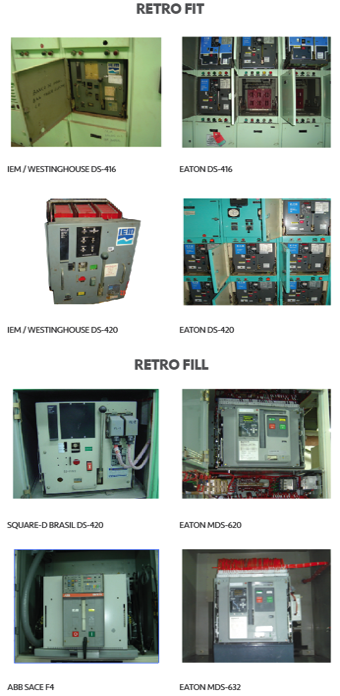

LOW VOLTAGE SOLUTIONS

600 VOLT & BELOW

Definition - RETRO FIT - Replace / Modernize

existing breakers with the same family / brand

of breakers.

Definition - RETRO FILL - Replace / Modernize

existing family / brand of breakers with a different

family / brand of breakers.

Low voltage solutions;

600 volt and below

Ampere ratings;

600 amp

1200 amp

2000 amp

3000 amp

4000 amp

Interrupting Capacity

42 ka

65 ka

80 ka

100 ka

Stock - EATON DS Magnum Interrupters

800 amp; 42ka;

1600 amp; 42ka

with cassettes

Replace the following Manufactures:

Westinghouse - DS

IEM / Westinghouse - DS

Siemens ELM

General  Electric - AK

Federal  Pacific

Merlin Gerin

Mitsubishi

ABB / Sace - Bergamo

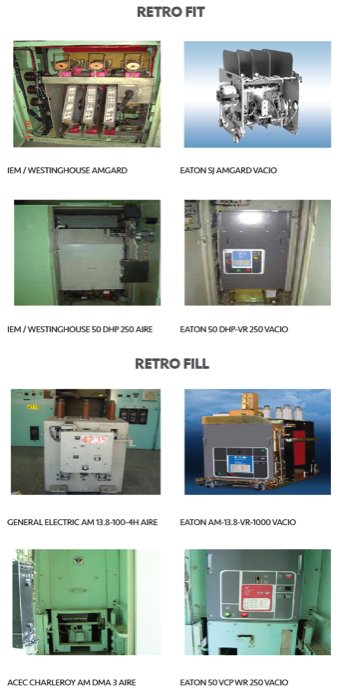

MEDIUM VOLTAGE SOLUTIONS

5 KV THRU 34.5 KV

Definition - RETRO FIT - Replace / Modernize

existing breakers with the same family / brand

of breakers.

Definition - RETRO FILL - Replace / Modernize

existing family / brand of breakers with a different

family / brand of breakers

Medium voltage solutions

4.16KV, 6.9KV, 7.5KV, 13.8KV, 23.0KV, 35.0 KV

Ampere ratings; 1200 thru 3000 amp

Interrupting Capacity

42 ka

65 ka

80 ka

100 ka

Control Voltage:

125 - 250 AC volts

125 - 250 DC volts

In Stock:

EATON VCPW  5kv & 15 kv Interrupters

150 VCPW 40 - 1200 amp

150 VCPW 40 - 3000 amp

40 ka interrupting capacity

1200 amp mini-module w/ TOC 5A /5B;

MOC 10A / 8B & accessory kits

3000 amp mini-module w/ TOC 5A / 5B;

MOC 10A / 8B & accessory kits

Replace the following Manufactures:

Westinghouse DHP

IEM / Westinghouse - DHP

Siemens

General  Electric -Magna Blast

Square D

Mitsubishi

ABB / Sace - Bergamo
